Product Details:

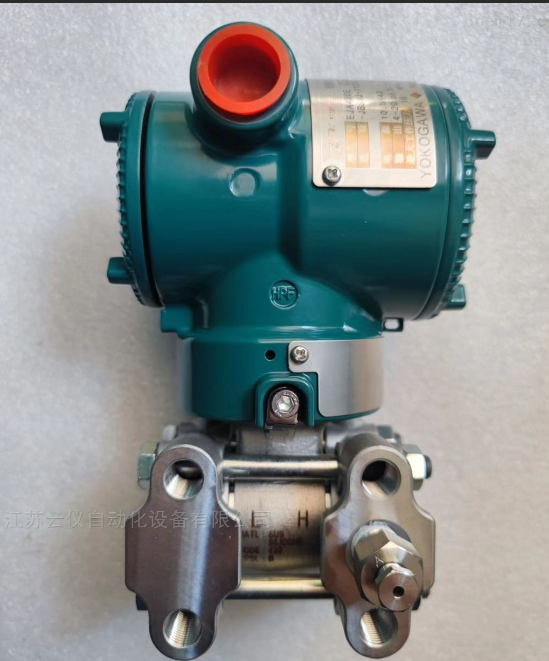

Manufacturer : Yokogawa
Product No. : EJA430E-JBS4J-917NB
Product Type : Gauge Pressure Transmitter
GENERAL
The high performance gauge pressure transmitter EJA430E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam pressure. The EJA430E outputs a 4 to 20 mA DC signal corresponding to the measured pressure. It also features quick response, remote setup and monitoring via BRAIN or HART communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available.
EJA-E series models in their standard confi guration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certifi ed as complying with SIL 2 for safety requiremen
MODEL AND SUFFIX CODES
Type : EJA430E = Gauge pressure transmitter
Output signa : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)*1
Measurement span (capsule) : B = 0.14 to 16 MPa (20 to 2300 psi)
Process connections : 4 = with 1/2 NPT female process connector
Bolts and nuts materia : J = B7 carbon steel
Installation : 9 = Horizontal piping and left side high pressure
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 7 = 1/2 NPT female, two electrical connections and a blind plug *6
Integral indicator : N = (None)
Mounting bracket : B = 304 SST 2-inch pipe mounting, flat type (for horizontal piping)
Related Models:
| EJA110E-JMS4G-717DD | EJA130E-JMS4G-91DDJ/KS21/X2/HC/N4 |
| EJA110E-JHS4G-717DD | EJA130E-FHS5G-919DB/X2/D4/M01/T09/KS26 |
| EJA110E-JMS4J-912DB/D4 | EJA130E-FMS5G-919DB/X2/D4/M01/T09/KS26 |
| EJA110E-DHS4J-912DB/D4 | EJA130E-JMS5G-719DD/X2/D4/M01/T09/KU22 |
| EJA110E-DHS4J-710DD/D3/C1 | EJA130E-FMS5G-919DB/X2/D4/M01/T09/KS26 |
| EJA110E-DMS4G-717DD | EJA130E-FMS5G-919DB/KS26/X2/D4/M01/T09 |
| EJA110E-JFS2J-915EB/X2 | EJA210E-JMS4J-912DN-EJ14A2SE01-B |
| EJA110E-JMS5G-93DEB | EJA210E-JMS5J-912NN-WA13A1SW00-B/D4 |
| EJA110E-JMS5G-93DEB/K1 | EJA210E-DMS4J-912DN-EJ14A2SE01-B/D4 |
| EJA110E-JMS4C-93DEB | EJA210E-JHS4J-912DN-EA14A1SE01-B/D4 |
| EJA110E-JFS4C-93DEB | EJA210E-JMS3J-919EN-WA12B2WW00-B/D4 |
| EJX110A-EMS5G-919DB/KS21/D4 | EJA210E-JHS4J-917DN-EA14B1SE03-B/D3 |
| EJX110A-EMS4G-919DB/KU22/N4 | EJA210E-DHS4J-912NN-EJ14A2SE01-B/D4 |
| EJX110A-EMS4J-919EN/KU22/M11/T13 | EJA210E-JMS4J-912DN-WA12A2WW00-B/D4 |
| EJX110A-EMS5G-92DDN/KU22/D3/T13 | EJA210E-JMS5G-917EN-WD22C2WW00-B |
| EJX110A-FHS5G-914DJ/KS26/M01/T13/D1 | EJA210E-JMS5G-919DN-WA12C1WW00-B/KU22/D4/X2/M0W/T52 |
| EJX110A-FMS5G-914DJ/KS26/M01/T13/D3 | EJA210E-JHS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56 |
| EJA118E-DMSCG-912DB-WJ13B2SW00-BA23/D4 | EJA210E-JMS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56 |
| EJA118E-JMSCJ-912NB-WA13A1SW00-AA25/D4 | EJA430E-DAS4G-717DD |
| EJA118E-JMSCC-910DB-WA13B2SW00-AA24/TF1 | EJA430E-DAS4J-717DD |
| EJA118E-JMSCG-919EJ-WD23C2HW00-BA23/KU22/X2/N4 | EJA430E-JAS5G-93DEB |
| EJA118E-JMSCG-919EJ-WD23C2SW00-BA23/KU22/X2/N4 | EJA430E-JBS4C-93DEB |
| EJA118E-JMSCG-919EJ-WD23C2SW00-BA2A/KU22/X2/N4 | EJA430E-FAS5G-919DB |
| EJA118E-FMSCG-919DB-WA43C1SW00-2A24/X2/M2W/T58 | EJA430E-DBS4J-917DB/KF22 |
| EJA118E-FMSCG-919DB-WA13C1SW00-1A2A/X2/M2W/T52 | EJA430E-DAS4J-710DD/D3/C1 |
| EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W | EJA430E-JAS4G-917DB/X2/A/D3/M11 |
| EJA118E-JMSCJ-919DB-WA42C2SW00-AA23/KS21/D3 | EJA430E-JAS4G-722ND/KU22/A/D4 |
| EJA118E-JMSCJ-919DB-WA22C2SW00-AA27/KS21/D3 | EJA430E-JAS4G-93CED/KU22/HAC/A |
| EJA118E-JMSCG-919DB-WA22C1SW00-BA26/KS21/M2W | EJA430E-JBS5G-93CED/KU22/HAC/A |
| EJA118E-FHSCG-919DN-WA23C2SW00-BA2A/KS26/T56 | EJA430E-JBS4G-93CED/KU22/HAC/A |
| EJA118E-JMSCG-92DDJ-WA23C2TW00-AA25/KS21/A/D4/M2W/T56 | EJA430E-JBS5C-91DDB/KU22/X2/T12 |
| EJA118E-JMSCG-93DDB-WA12C1SW00-BA24/KU22/D4/M2W/T52 | EJA430E-JAS5J-919DN/KS21/D3/M01/T01/X2 |
| EJA118E-JMSCG-93DDB-WA12C1SW00-EA24/KU22/D4/M2W/T52 | EJA430E-JAS5G-919DB/KU22/X2/D3/M01/T01 |
